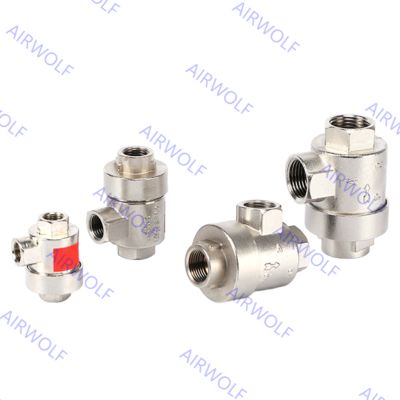

Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Detalhes do produto:
Lugar de origem: China
Marca: Sunrise, AIRWOLF or OEM
Número do modelo: BQE-02, BQE-03, BQE-04
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 peça
Preço: 4-5USD
Detalhes da embalagem: Caixas, caixas, paletes, sacos plásticos
Tempo de entrega: 1-7 dias de trabalho
Termos de pagamento: T/T, União Ocidental, PAYPAL
Habilidade da fonte: 1000 PCs por semana
Contato
Descrição de produto detalhada
Pressão Operacional: 0~1,0 MPa Faixa de temperatura de trabalho: –5~+60°C
Tamanho da porta: PT1/4, PT3/8, PT1/2 Função: Controle de velocidade
Meio de trabalho: Ar comprimido seco filtrado por 40μm Cor: Prata
Destacar:

Brass quick exhaust valve with PT ports

,

Quick exhaust valve for air flow control

,

BQE series valve with 1.0MPa pressure

Sunrise BQE Series Brass Quick Exhaust Valve BQE-02, BQE-03, BQE-04 with PT1/4, PT3/8, PT1/2 Port Size and 0~1.0MPa Operating Pressure

Order Codes:
Type Port Size Positions
BQE-02 PT1/4 3/2 way
BQE-03 PT3/8 3/2 way
BQE-04 PT1/2 3/2 way
Symbol:

Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Specification:
Model BQE-01 BQE-02 BQE-03 BQE-04
Working Media Clean air
Port Size PT1/8 PT1/4 PT3/8 PT1/2
Max.Working Pressure 1.0MPa
Proof Pressure 1.5MPa
Working Temperature Range -5~60℃
Material Body Brass
Seal NBR
Dimension:

Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
