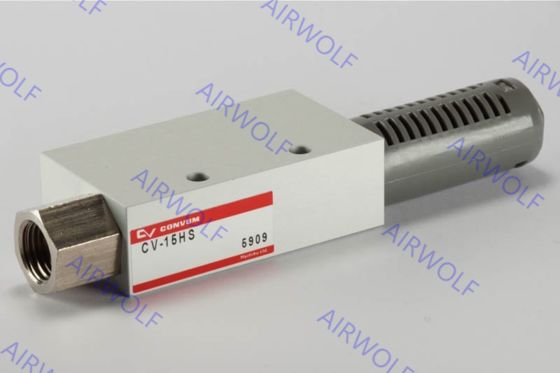

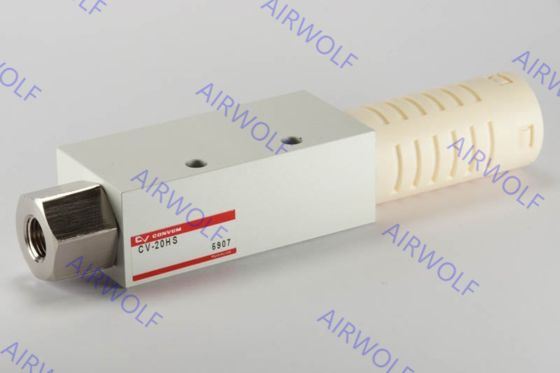

CV-10HS, CV-15HS, CV-20HS CONVUM MYOUTOKU CV Series Vacuum Ejectors

Detalhes do produto:

Lugar de origem:	Japão, China
Marca:	CONVUM, MYOUTOKU, AIRWOLF or OEM
Número do modelo:	CV-10HS, CV-15HS, CV-20HS

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 peça
Preço:	2-3USD
Detalhes da embalagem:	Caixas, caixas, paletes, sacos plásticos
Tempo de entrega:	1-7 dias de trabalho
Termos de pagamento:	T/T, União Ocidental, PAYPAL
Habilidade da fonte:	1000 PCs por semana

Contato

Descrição de produto detalhada

Código do artigo:	CV-10HS, CV-15HS, CV-20HS	Tipo:	Sem pressostato
Material:	Liga de alumínio	Pressão Operacional:	0.1~0.6Mpa
Faixa de temperatura de trabalho:	0~60℃ sem congelamento	Função:	Gerar Vácuo
Destacar:	CV Series vacuum ejectors with 0.1~0.6MPa , Pneumatic vacuum ejectors for 0～60℃ range , Vacuum ejectors with generate vacuum function

CV-10HS, CV-15HS, CV-20HS CONVUM MYOUTOKU CV Series Vacuum Ejectors

The CONVUM CV Series Vacuum Ejector is a pioneering product line from the Japanese company CONVUM, a brand name derived from "Compressor" and "Vacuum" that has become synonymous with high-quality venturi-based vacuum generation since the series' launch in 1972. These ejectors operate on the Venturi effect, using compressed air forced through a narrow nozzle to create a high-velocity stream that generates a vacuum at the suction port, enabling the handling of various materials without any moving parts. The series includes multiple models (e.g., CV-10HS, CV-15HS, CV-20HS) differentiated by nozzle diameters (e.g., 1.0mm, 1.5mm, 2.0mm), which correspond to their performance characteristics, such as vacuum pressure (up to -92 kPa) and air consumption. Renowned for their compact, lightweight aluminum body with a brass nozzle and integrated silencer, they are designed for durability, low noise, and long service life across automotive, packaging, and electronics automation industries.

Order Codes:

Model	Nozzle size(Φmm)	Compatible Silencer
CV-10HS	1	MSS-01
CV-15HS	1.5	MSM-01
CV-20HS	2	MSL-02
CV-25HS	2.5	MS6-01
CV-30HS	3	MS6-01
CV-10HSCK	1	MSS-01
CV-15HSCK	1.5	MSM-01
CV-20HSCK	2	MSL-02
CV-25HSCK	2.5	MS6-01

Symbol:

CV-10HS, CV-15HS, CV-20HS CONVUM MYOUTOKU CV Series Vacuum Ejectors

Specifications:

Description Model number	Unit	CV-10			CV-15			CV-20			CV-25
Description Model number	Unit	HS	LS	HR	HS	LS	HR	HS	LS	HR	HS	LS	HS
Nozzle size	mm	1.0			1.5			2.0			2.5
Fluid		Non-lubricated compressed air
Ambient temperature	°C	0~60(No Freezing)
Operating pressure range	MPa	0.1~0.6
Rated pressure	MPa	0.5		0.35	0.5		0.35	0.5		0.35	0.5
Maximum vacuum pressure	kPa	-92	-57	-91	-92	-57	-91	-92	-57	-91	-92	-57	-92
Suction flow	L/min(ANR)	27	36	25	63	95	54	110	155	88	160	250	225
Air consumption	L/min(ANR)	44		100			180			265			385

Switch Specifications:

Description Model number		Unit	CV-CK
Fluid			Air
Operating pressure range		kPa	-20～-53
Withstand pressure		MPa	0.5
Ambient temperature range		℃	0～60 (No freezing)
Ambient humidity range		%RH	35～85 (No condensation)
Switch type			Reed switch, normally opened (N.O)
Rated voltage		V	AC125, 250
Maximum load current	AC125	A	5
Maximum load current	AC250	A	3
Repeatability		kPa	±5.3
Hysteresis		kPa	4.0～13.3
Cable length		mm	100

Dimensions:

CV-10HS, CV-15HS, CV-20HS CONVUM MYOUTOKU CV Series Vacuum Ejectors

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
