Name: CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber
Brand: Airwolf Automation
SKU: AC2020-2, AC2030-2, AC2050-2, AC2525-2
Price: 5.00 USD
Availability: InStock

Casa Produtos Cilindros de ar pneumáticos

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber

Detalhes do produto:

Lugar de origem:	Taiwan, China, China
Marca:	CJAC, AIRWOLF or OEM
Número do modelo:	AC2020-2, AC2030-2, AC2050-2, AC2525-2

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 peça
Preço:	4-7USD
Detalhes da embalagem:	Caixas, caixas, paletes, sacos plásticos
Tempo de entrega:	1-7 dias de trabalho
Termos de pagamento:	T/T, União Ocidental, PAYPAL
Habilidade da fonte:	1000 PCs por semana

Contato

Descrição de produto detalhada

Código do artigo:	AC2020-2, AC2030-2, AC2050-2, AC2525-2	Material de tubulação exterior:	AISI1215 e STKM11A Preto oxidado, tratamento de níquel de níquel
Pistão Rod Material:	Tratamento de cromo duro	Faixa de temperatura de trabalho:	-10~+80℃
Função:	Proteção de impacto, absorção de choque	Faixa de velocidade:	2,0 ~ 2,5 m/s
Destacar:	CJAC AC Series shock absorber , Pneumatic air cylinder shock absorber , AC2020-2 shock absorber with warranty

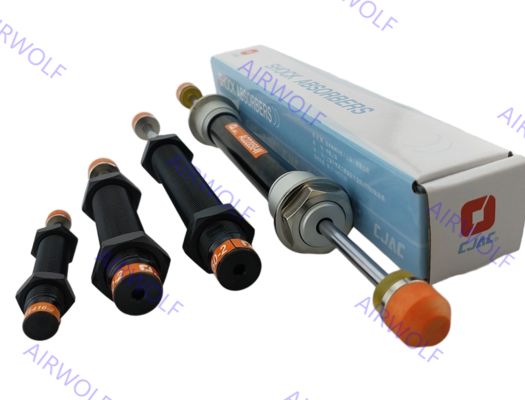

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber

The AC series is designed for fixed construction. Linear deceleration of moving objects is maintained through specially designed and tested oil holes and alignment. From high-speed light loads to low speeds and high loads, this shock absorber absorbs the appropriate energy without adjustment. After the load is removed, the axis is pushed to the original position by the return spring. The AC series has three models of high speed, medium speed, and low speed to meet your different requirements.

Order Code:

Item Code	A(mm)	B(mm)	D(mm)	F(mm)
AC2020-2	145.3	110	6	101
AC2030-2	158.3	113	6	104
AC2050-2	232.5	167	6	158
AC2525-2	155	111	8	101

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber

Specifications:

Model	AC2020-2	AC2030-2	AC2050-2	AC2525-2
Stroke(mm)	20	30	50	25
Maximum absorbed energy (Nm(Et))	40	50	60	80
Absorbed energy per hour (Nm(Etc))	40000	48000	60000	54000
Maximum effective weight (Kg(Me))	200	200	400	800
Highest impact speed (m/s(v))	2.0	2.0	2.0	2.5
Thread	M20x1.5	M20x1.5 *M20x2.0	M20x1.5	M25x1.5 *M25x2.0

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
